English Nitrogen Purging Station (I)
Night Vision Devices (NVDs) are required to be sealed and purged with dry Nitrogen. This is done in order to maximize their observation capabilities and preserve the optical performance, as well as to prolong the life of the inner parts of the device.
It is very important to preserve an optimal purging condition within the device in order to prevent humidity from entering it and causing wetness and dampness on the lenses.

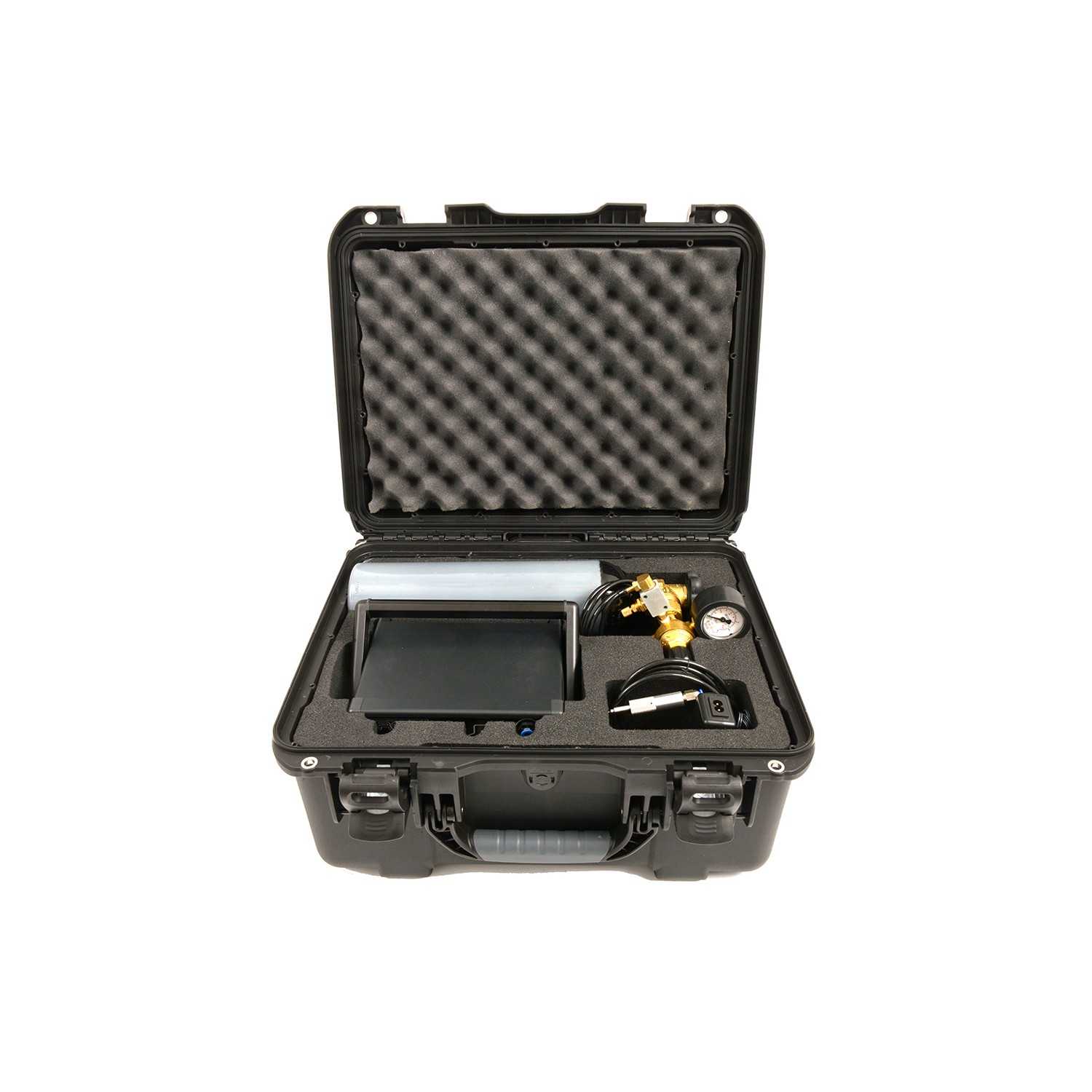

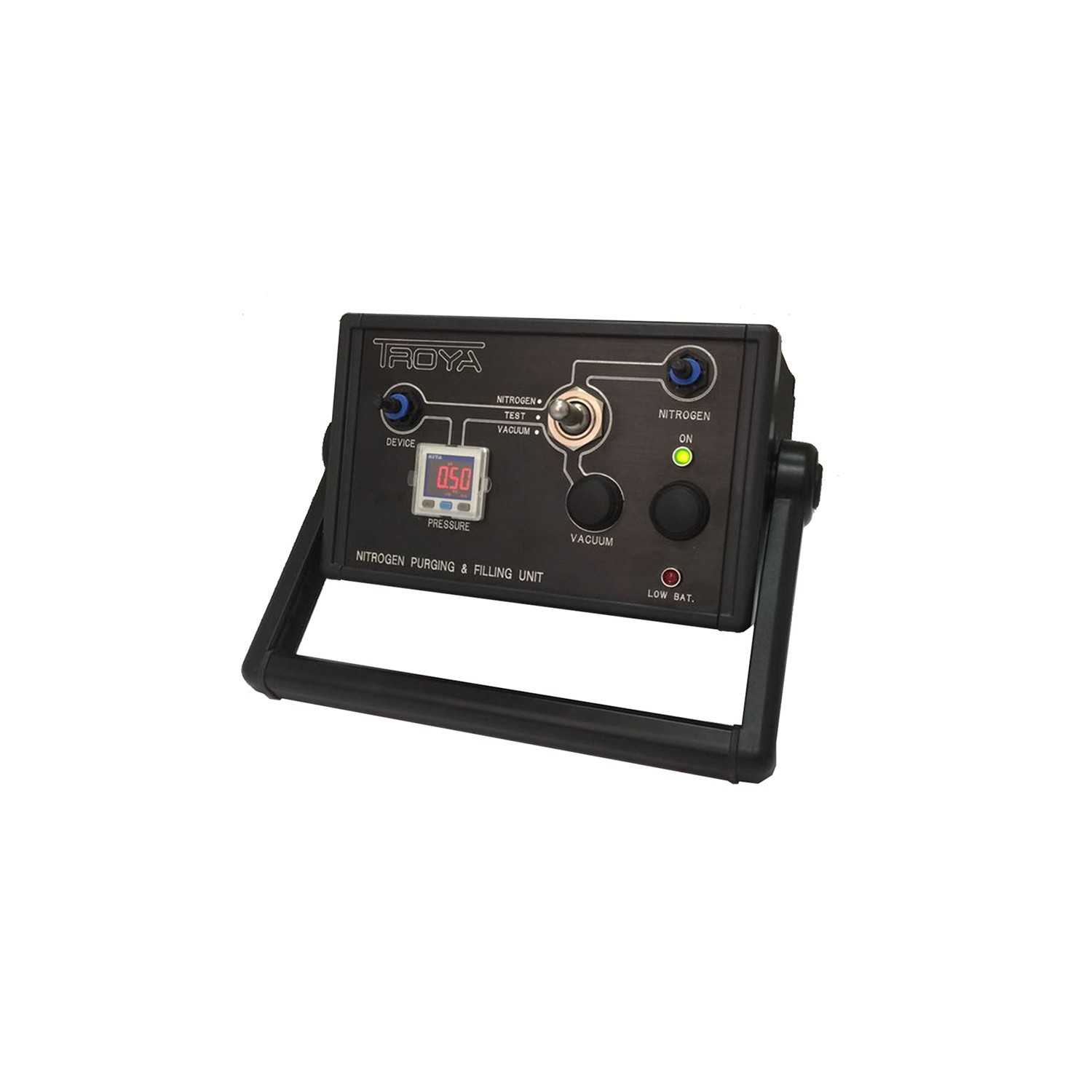

TROYA’s lightweight portable Nitrogen Purging Station features a highly accurate digital pressure indication with an automated vacuum pre-setting capability, containing an internal rechargeable battery for long duration and independent operation, an electric vacuum pump, a manual operation modes' valve for the purging and leak detection process.
NSN 4940-31-018-5528
Download PDF
| Power Source | 3 cells Li-Ion battery charger, 100-220VAC 50-60Hz 0.35A, 12.6 VDC/1.2A or External (DC 5v) |
| High Pressure Gauge | 0 to 145 psi |
| Low (Vacuum) Pressure Gauge | 0 to -14.1 psi |
| Maximum Allowed Pressure Drop | 0.06 psi/min |
| Initial Nitrogen Pressure | 3.0 ±0.5 psi |
| Pressure Regulator | 30 psi/ 2 ATM |
| Size (L x W x H) | 210 X 160 X 133mm |
| Operation Temperature | 0°C to +55°C |
| Weight | 3 Kg |
| Nitrogen Type | MIL-P-27401 Type I Grade C |
Standard Accessories Include:
- Operation Manual
- Microfiber Cleaning Cloth
- Purging Adaptor/s
- Power/ Charging Cable
Optional Accessories Include:
- Hard Shell Carrying Case
