English Nitrogen Purging Station (III)

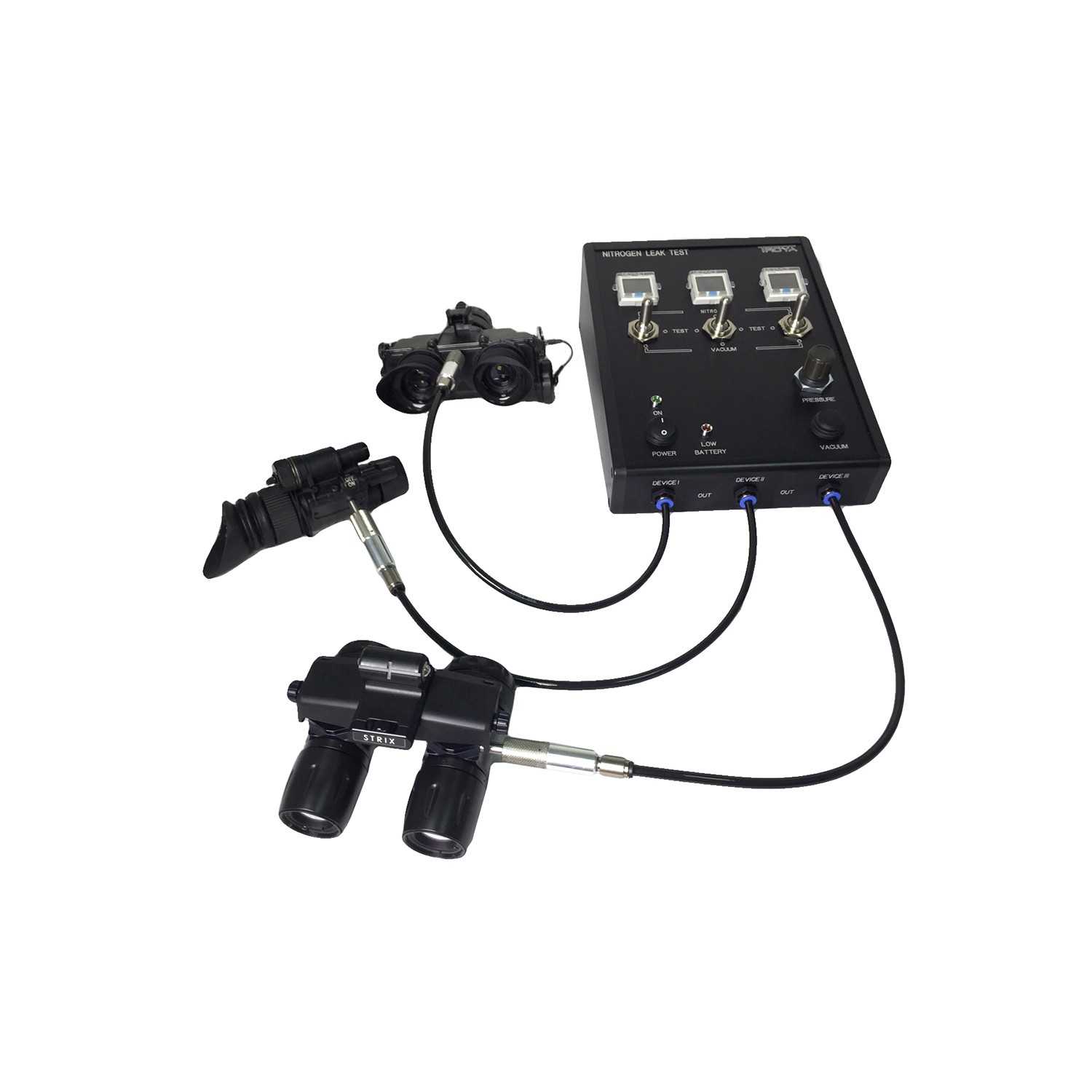

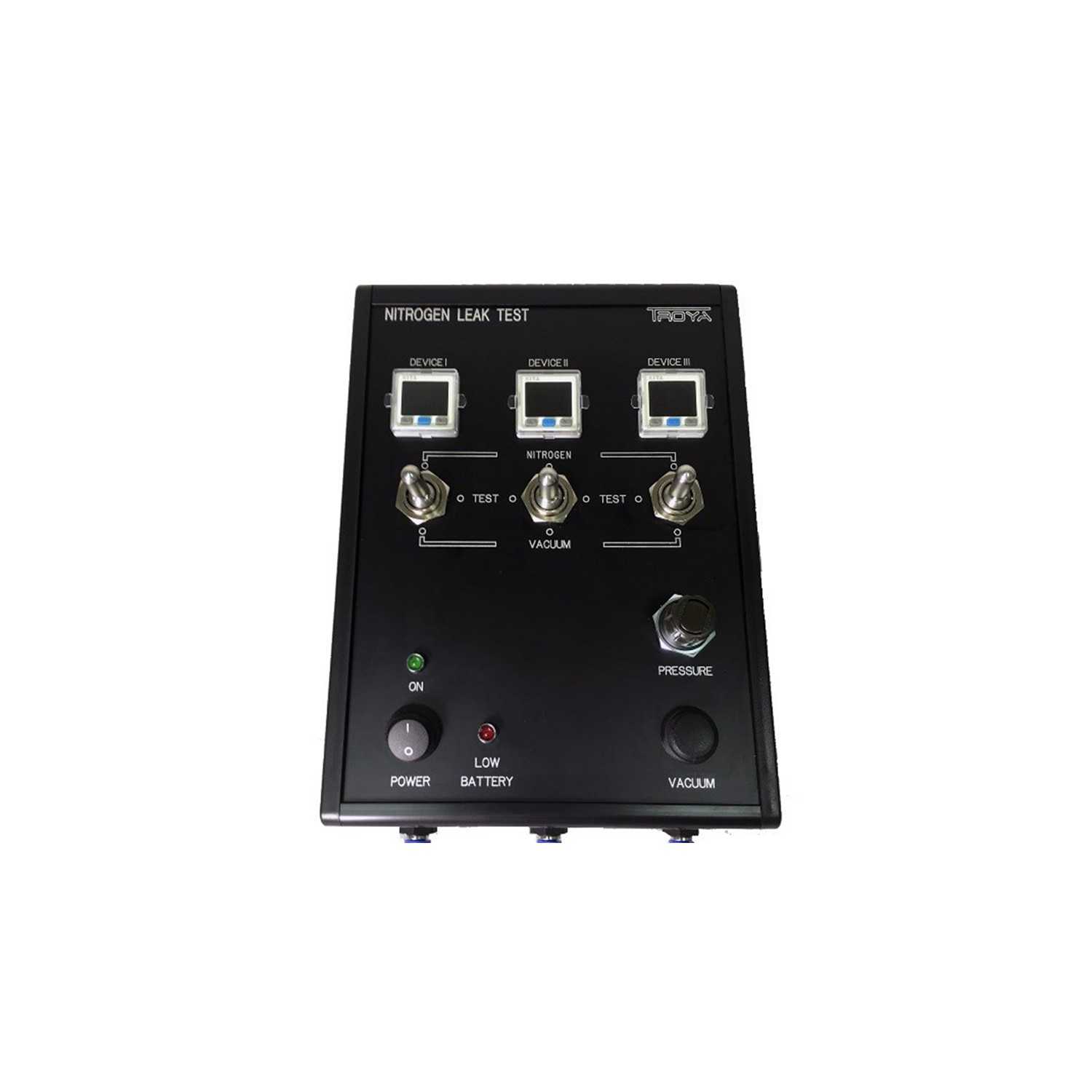

NVDs are required to be sealed and purged with dry Nitrogen. This is done in order to maximize their observation capabilities and preserve the optical performance, as well as to prolong the life of the inner parts of the device. It is very important to preserve an optimal purging condition within the device in order to prevent humidity from entering it and causing wetness and dampness on the lenses. TROYA’s Nitrogen Purging Station requires no electricity whatsoever and is operated manually. The Purging Station includes a vacuum pump with leak detection capability, and a refillable nitrogen tank. It is very lightweight (hard carrying case included) and hence portable.
Download PDF
| Power Source | 3 cells Li-Ion battery charger, 100-220VAC 50-60Hz 0.35A, 12.6 VDC/1.2A or External (DC 5v) |
| Operation Temperature | 0°C to +55°C |
| Nitrogen Type | MIL-P-27401 Type I grade C |
| High Pressure Gauge | 0-145 psi |
| Low Pressure Gauge | 0-14.1 psi |
| Pressure Regulator | 30 psi / 2 ATM |
| Maximum Allowed Pressure Drop | 0.06 psi/min |
| Initial Nitrogen Pressure | 3.0 ±0.5 psi |
| Size (L x W x H) | 281X210X99mm |
| Weight | 2.5 Kg |
Standard Accessories Include:
- Operation Manual
- Microfiber Cleaning Cloth
- Purging Adaptor/s
- Power/ Charging Cable
Optional Accessories Include:
- Hard Shell Carrying Case
